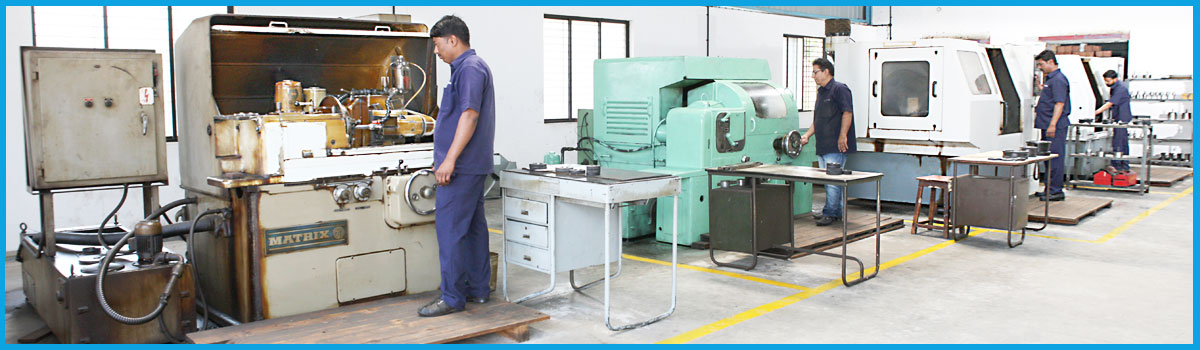

Facilities at SIZECONTROL

We have state of the art set up with

State of art heat treatment and subzero facilities instead of in-house heat treatment and subzero
In-House Heat Treatment Unit and Sub-Zero Treatment Facility,
Experienced, Qualified Engineers and Technical Personnel.

Precision grinding machines

We have MATRIX- UK make CNC and Conventional internal and external thread grinding machines have a thread grinding capacity upto 400mm for external and 500mm for internal of varieties of pitch combination and different types of thread forms like Metric, Unified, Butterss ,Acme, MOD TAPER Acme, NPT, NPTF, BSPT,BSW,BSF,BSP AND SPECIAL THREAD FORMS TO CUSTOMER REQUIREMENTS WITH SINGLE START AND MULTI START.

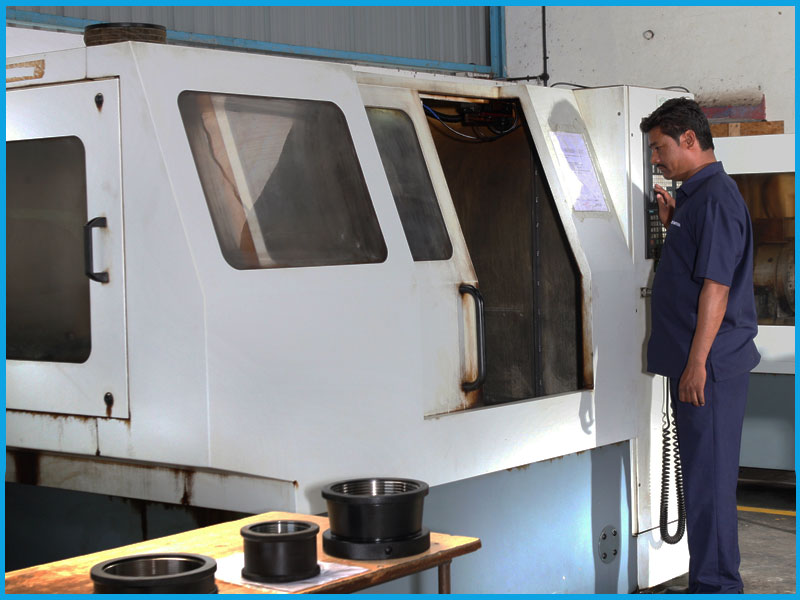

Matrix 3060 Internal thread grinding CNC machine

Capacity - bore diameter ground 16 - 150 mm

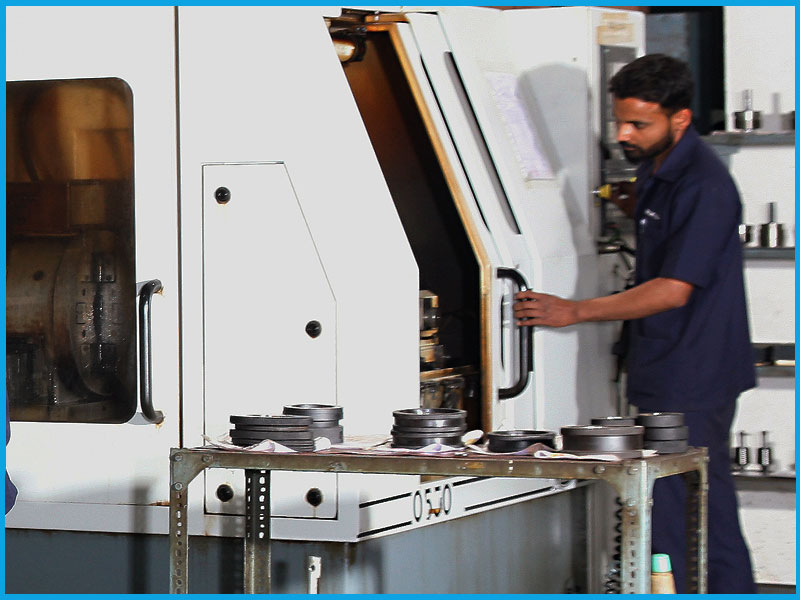

Matrix 550 External thread grinding CNC machine

Capacity - external diameter ground 150 mm

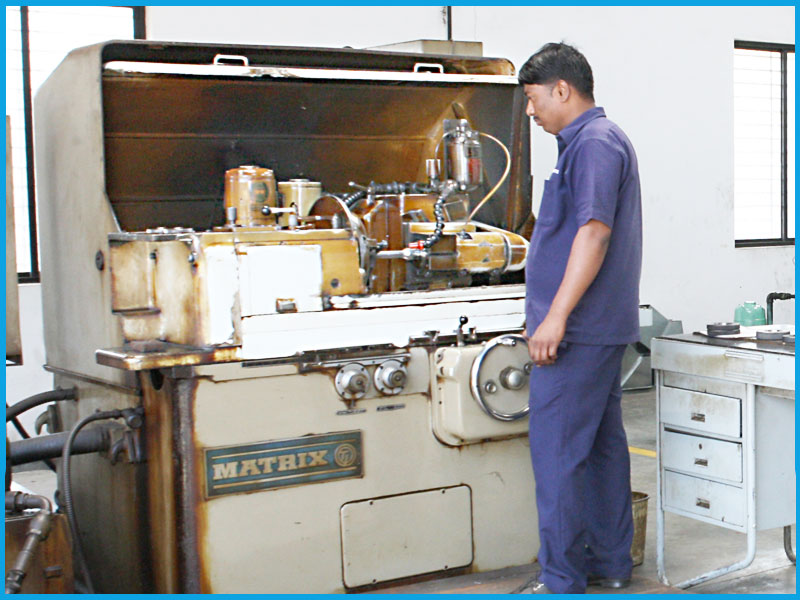

Matrix 24 Internal thread grinding machine

Capacity- bore diameter ground 24 mm to 200 mm

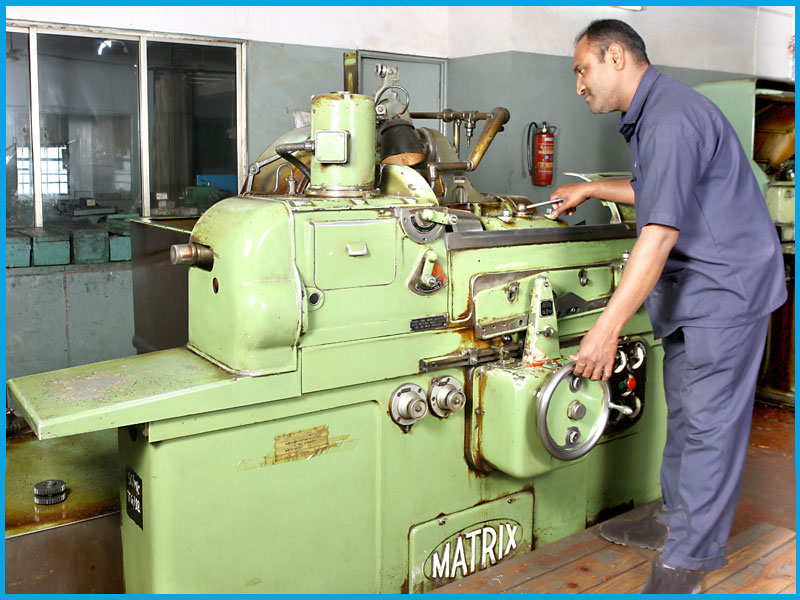

MATRIX 16 Universal thread grinding machine

Capacity- external diameter ground UPTO to 200 mm

Matrix 37 type III Universal thread grinding machine

Capacity- external diameter ground UPTO to 350 mm

BORE DIAMETER GROUND 300 MM

Matrix 46 Universal thread grinding machine

Capacity- external diameter ground UPTO to 250 mm

BORE DIAMETER GROUND 250MM

Matrix 42 Universal thread grinding machine

Capacity- bore diameter ground 24 mm to 400 mm
